Arduino IDE使うのやめて、Sublime Text + Deviotを使う
概要
言いたいことは1つ
Arduino IDEのエディタ機能でプログラミングすることに耐えられない
違う環境を探すことにした
候補
Sublime Text + を使って環境を整えることにした
環境構築方法
前提条件
- Sublime TextでPackageのインストールができる状態になっている
- わからなかったら、ここまではググれば余裕でできるはず
- Arduino IDE自体はインストール済み
- Macでしか確認してないです
Deviotのインストール
- コマンドパレットを開く
shift + command + P
- 僕はVimっぽく
esc
して、COMMAND MODEにしてから:
でパレットを開いてます
install Package
と入力して選択(推測されるので途中まで入力すればいいと思う)Deviot
で入力して選択(これも推測されるので途中まで入力すればいいと思う)- ちょっと待てばインストールが終わります
- 上のヘルプの右にDeviotが表示されていれば成功

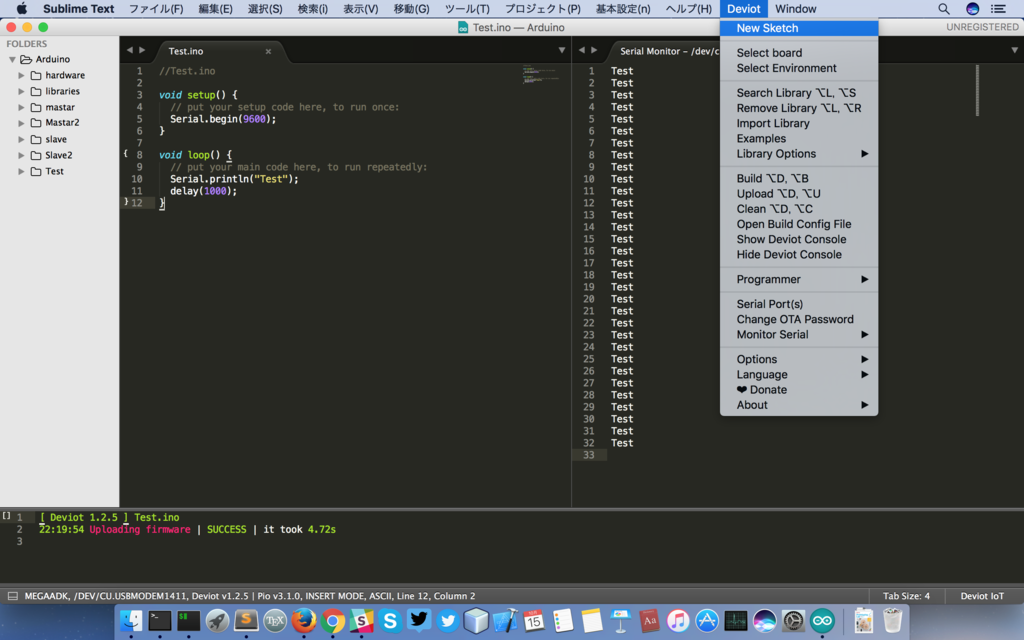

使い方
読めばわかる(素晴らしい)
使いそうなものだけ
- Select boart
- Arduinoの種類を選べる。自分の使ってるやつを選ぼう
- Build
- IDEでいう検証
- Upload
- Monitor Serial
- シリアルモニタをSublime Textで表示できる
補足

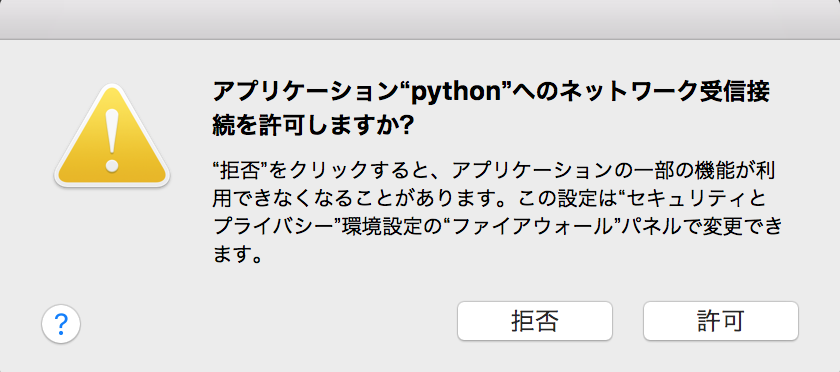

- Pythonへの使用許可を求められる
- 2台使ってi2c通信するとき、シリアルポートを切り替える毎に出るのがツライ
- 対策方法は現状調べてない
- 僕の場合、Arduino IDEへのパスの設定を特別しなくてもよかった
- デフォルトの位置にインストールしてないときは変更する必要がありそう
- DeviotはArduino-like IDEの後継(?)
おわりに
少しはArduinoのプログラミングをする気になりました
Sorry, this command is disabled, the Python's site module could not be loaded
brew upgrade
したら、vimにこんなエラーが出るようになった
(brew cleanup
もした)
Error detected while processing function <SNR>23_InitializePythonBuiltin: line 23: E887: Sorry, this command is disabled, the Python's site module could not be loaded. Press ENTER or type command to continue
まぁ、読んだ通りのエラー
python関係が弄られちゃったかな
brew upgrade
の内容は以下
$ brew upgrade ==> Upgrading 11 outdated packages, with result: harfbuzz 1.3.2, mpfr 3.1.5, node 6.7.0, postgresql 9.5.4_1, pyenv 1.0.2_1, python 2.7.12_1, python3 3.5.2_2, readline 7.0, redis 3.2.4, ruby 2.3.1_1, sqlite 3.14.2_1
ありがたいことに、直し方をまとめてくれている人がいた
Vimで'E887: Sorry, this command is disabled, the Python's site module could not be loaded.'なエラー
私の場合も
brew reinstall vim --HEAD
これで直りました
GitLabの更新 その3
使えるようになった機能
- アーカイブダウンロード
- 個別のダウンロード
- Raw表示
修正に苦しんだこと
- Raw表示
なんでRaw表示できないのか?
他にもRaw表示できないという報告はちらほらされている様子
だが、再現性のない不具合のようで、抜本的な解決がされてないようだ
この不具合はGitLabに内蔵されているnginxではなく、
aptとかで普通にインストールされたnginxを使った場合に起こる
リバースプロキシを使うことになるのだが、GitLabが上手く動作しなくなることがある様子
Workhorseが悪いのか、Unicornが悪いのかわからん…
再インストールもしてみたが、sshとかの設定を壊さない程度にやったので完璧じゃない
更新頻度も高いし、Updateも簡単なので、とりあえず様子見しようと思う
実は直ってたやつ
なぜか表示できるようになってた
自分でテスト用に作ったレポジトリのRaw表示ができなかったのだが、
先生のレポジトリでtexをRaw表示したら見れた
コミットし直したら自分のレポジトリのRaw表示もできるようになった
コミットし直さないとRaw表示してくれないという罠
この更新作業でLinuxコマンドをいろいろ調べて、実際に使ってみれたので勉強になった
GitLabの更新 その2
エラーチェック
エラーチェックコマンドがわかったので、やってみた
sudo gitlab-rake gitlab:check SANITIZE=true
結果
-> % sudo gitlab-rake gitlab:check SANITIZE=true Checking GitLab Shell ... GitLab Shell version >= 3.4.0 ? ... OK (3.4.0) Repo base directory exists? default... yes Repo storage directories are symlinks? default... no Repo paths owned by git:git? default... yes Repo paths access is drwxrws---? default... yes hooks directories in repos are links: ... 2/2 ... ok ~~~~~~~~~~~~~~ 略 ~~~~~~~~~~~~~~ 19/198 ... ok Running /opt/gitlab/embedded/service/gitlab-shell/bin/check Check GitLab API access: FAILED: Failed to connect to internal API gitlab-shell self-check failed Try fixing it: Make sure GitLab is running; Check the gitlab-shell configuration file: sudo -u git -H editor /opt/gitlab/embedded/service/gitlab-shell/config.yml Please fix the error above and rerun the checks. Checking GitLab Shell ... Finished Checking Sidekiq ... Running? ... yes Number of Sidekiq processes ... 1 Checking Sidekiq ... Finished Checking Reply by email ... Reply by email is disabled in config/gitlab.yml Checking Reply by email ... Finished Checking LDAP ... LDAP is disabled in config/gitlab.yml Checking LDAP ... Finished Checking GitLab ... Git configured with autocrlf=input? ... yes Database config exists? ... yes All migrations up? ... yes Database contains orphaned GroupMembers? ... no GitLab config exists? ... yes GitLab config outdated? ... no Log directory writable? ... yes Tmp directory writable? ... yes Uploads directory setup correctly? ... no Try fixing it: sudo chown -R git /var/opt/gitlab/gitlab-rails/uploads sudo find /var/opt/gitlab/gitlab-rails/uploads -type f -exec chmod 0644 {} \; sudo find /var/opt/gitlab/gitlab-rails/uploads -type d -not -path /var/opt/gitlab/gitlab-rails/uploads -exec chmod 0700 {} \; For more information see: doc/install/installation.md in section "GitLab" Please fix the error above and rerun the checks. Init script exists? ... skipped (omnibus-gitlab has no init script) Init script up-to-date? ... skipped (omnibus-gitlab has no init script) projects have namespace: ... 2/2 ... yes ~~~~~~~~~~~~~~ 略 ~~~~~~~~~~~~~~ 19/198 ... yes Redis version >= 2.8.0? ... yes Ruby version >= 2.1.0 ? ... yes (2.3.1) Your git bin path is "/opt/gitlab/embedded/bin/git" Git version >= 2.7.3 ? ... yes (2.7.4) Active users: 52 Checking GitLab ... Finished
2箇所エラーが出た。
エラー1
Running /opt/gitlab/embedded/service/gitlab-shell/bin/check Check GitLab API access: FAILED: Failed to connect to internal API gitlab-shell self-check failed Try fixing it: Make sure GitLab is running; Check the gitlab-shell configuration file: sudo -u git -H editor /opt/gitlab/embedded/service/gitlab-shell/config.yml Please fix the error above and rerun the checks. Checking GitLab Shell ... Finished
/etc/gitlab/gitlab.rb
の
# Set the internal API URL gitlab_rails['internal_api_url'] = 'https://gitlab.moongdal.net'
設定しない方がよかった様子
コメントアウトした
エラー2
Uploads directory setup correctly? ... no Try fixing it: sudo chown -R git /var/opt/gitlab/gitlab-rails/uploads sudo find /var/opt/gitlab/gitlab-rails/uploads -type f -exec chmod 0644 {} \; sudo find /var/opt/gitlab/gitlab-rails/uploads -type d -not -path /var/opt/gitlab/gitlab-rails/uploads -exec chmod 0700 {} \; For more information see: doc/install/installation.md in section "GitLab" Please fix the error above and rerun the checks.
こいつは指示通りやればエラーが消えた
最終的に
ダウンロードできない不具合は直らなかった
GitLabの更新 その1
事の始まり
研究室のGitLabがかなり古かった
その時にまとめたブログ
2016/09/10での最新版:8.11.5
研究室のGitlab:8.1.3
Webから、アーカイブ(zipでまとめてくれる)がダウンロードできないバグがあったので、夏休み中にUpdateしたいと思った
状況確認
研究室のGitlabはVPSで動いている
cat /etc/lsb-release DISTRIB_ID=Ubuntu DISTRIB_RELEASE=14.04 DISTRIB_CODENAME=trusty DISTRIB_DESCRIPTION="Ubuntu 14.04.5 LTS"
研究室にGitlabを導入したのは先輩で多少アプデしてそのままのようだ
拾えた情報
- omnibusのGitLabを導入
- nginxはaptで入れたものを使用
- https(port番号443)のみで動かしてる
GitLabの構成
ディレクトリ構成
/opt/gitlab
/var/opt/gitlab
/var/log/gitlab
/etc/gitlab
ソフトウェア構成
- git
- Ruby
- Ruby on Rails
- runit
- スーパーデーモン
- nginx
- フロントエンド Web サーバー (無効化可能)
- デフォルト TCP ポート: *:80
- Unicorn
- PostgreSQL
- デフォルトポート: /tmp/.s.PGSQL.5432
- Redis
- デフォルトポート: 127.0.0.1:6379
- Chef
- そのほか
詳細は以下のページ
設定ファイルの場所
/etc/gitlab/gitlab.rb
- GitLabの各種設定を行う
/etc/nginx/conf.d/gitlab.conf
- このGitlabはGitlab内蔵のnginxを使っていないのでここで設定
UpdateするまえにBackup
sudo gitlab-rake gitlab:backup:create
/var/opt/gitlab/backups/
以下にtar形式でBackupされる
Update
バージョンによって多少手順が違うらしい
とりあえず、Updating from GitLab 6.6 and higher to 7.10 or newerを見ながらやった
apt-getすればいいだけだった
アクセスしたら500エラーになって焦ったけど、Ubuntuを再起動したら直った
不具合
不具合を列挙する(修正済みを含む)
ログアウトするとGitLabに入れなくなる
[修正済み]
他の不具合を修正するためにいろいろ設定をいじったらなった
たぶん、port周りの設定をミスってた
Gravatar表示ができない
先生はGravatarでアイコンを表示していたのだが、表示されなくなる不具合
原因は、フロントエンド Web サーバー(nginx)の実行ユーザーが指定されてなかったせい
/etc/gitlab/gitlab.rb
に
web_server['external_users'] = ['www-data']
と追記
アーカイブがダウンロードできない
[修正済み]
一番の問題だった
ググっても同じ不具合が起こっている人がいない(英語圏も含め)
後述するRAW表示や個別のファイルダウンロードができないというlssuesがあった
こいつのVhost (server block)をnginxの設定(/etc/nginx/conf.d/gitlab.conf
)に加えたらアーカイブのダウンロードが可能になった
RAW表示や個別のファイルダウンロードができない
[未解決]
原因不明。上記のissuesを修正すればいいと思ったのだが、直らず
-> 直ってた。詳しくは
siragumohuin.hatenablog.com
怪しい部分「gitlab-workhorse」
workhorseって何?
gitlab-workhorseはファイルのダウンロード、ファイルのアップロード、Gitのpush/pullとかGitのアーカイブダウンロードなどのデカイHTTP要求を処理するらしい
高負荷に耐えられるように設置されたという歴史があるっぽい
Hatena Blog始める
始めた理由
Markdownで書けるの最高だと思う
